Type M CL-800 Drainage Frame

MSU M CL-800 hatches are designed to be cast into place in areas where water infiltration and drainage into the access opening is a concern. These hatches are a flush design and support high impact, occasional traffic loads which are designed for an emergency loading by a CL-800 #2 axle wheel load with an impact factor of 40%, per clause , CAN/CSA-S6-06.

Safety controls are engineered right into all MSU access hatches.

M CL-800 access hatches are:

  • Aluminum or stainless steel types 304 or 316 construction
  • Gasketed drainage frame
  • Welded drain coupling and ABS fittings
  • Slip resistant checkerplate lid
  • Hold open arm, in type 316 stainless steel, locks lid safely at 90 degree vertical
  • Continuous hinges 316 stainless steel with all countersunk fasteners
  • Lifting spring in 316 stainless steel
  • Slam lock in type 316 stainless steel with sealing plug and opener
  • Recess padlock hasp ( padlock by others)
  • Reinforced design for an emergency loading by a CL-800 #2 axle wheel load with an impact factor of 40%, per clause , CAN/CSA-S6-06
  • Continuous flange anchor
  • Bituminous paint on all areas in contact with concrete
  • All fasteners in stainless steel type 316
  • Welding to CSA W47.1 and CSA W47.2

MSU M CL-800 hatches are manufactured in single, double and parallel door units.

TYPE M CL-800 ALUMINUM HATCHES DOWNLOAD

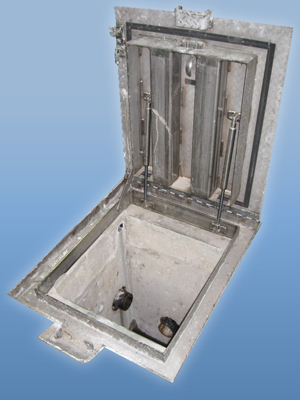

M CL-800 Single Door Unit 900 x 900
MD CL-800 Double Door Unit 1200 x 1200
**Sizes shown are examples only**



Also available in Stainless Steel types 304 or 316

Options:

  • Stainless steel types 304 and 316
  • Insulation with backpan (Styrofoam sm 50mm standard)
  • Custom signage, lettering and wording
  • Custom finishes: anodizing, painting
